Comparative burning test

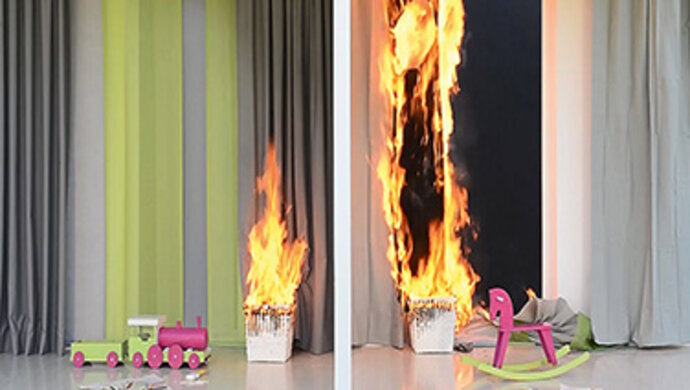

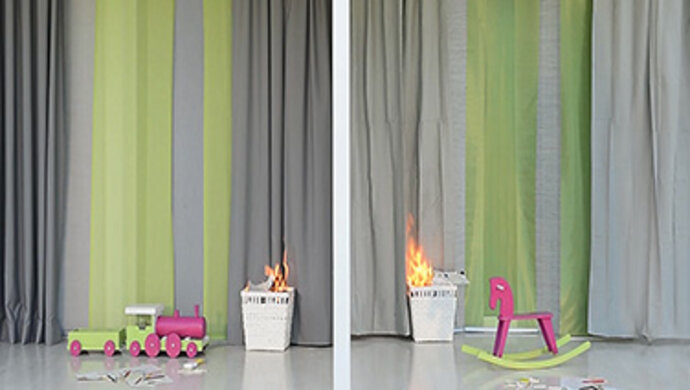

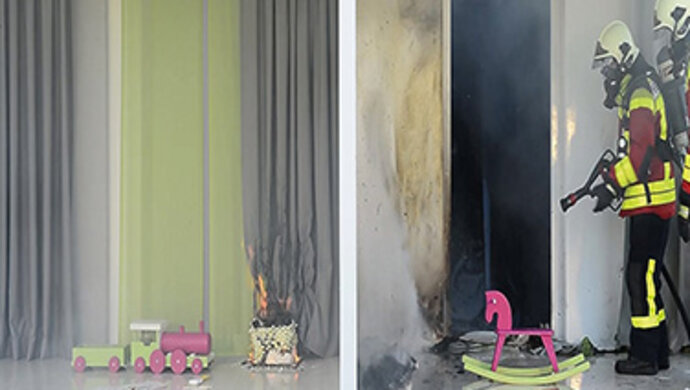

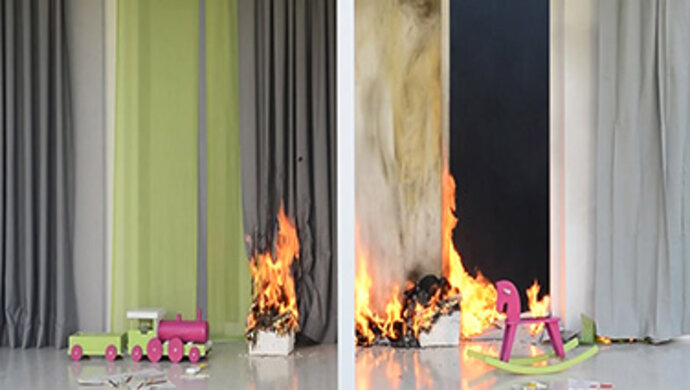

This test shows how flame retardant Trevira CS textiles (left) melt only slowly after the ignition source is extinguished, while conventional textiles (right) go up totally in flames.
National and international standards that test the burn behaviour of materials make an essential contribution to preventative fire safety. Through compliance with legally required, government-regulated measures it is possible to reduce the risk of fire in buildings considerably.
Trevira CS textiles meet the key burn test standards throughout the world. It is a precondition of the issue of the Trevira CS trademark that the textile fabric has been tested for flame retardancy.
Indorama Ventures works with a variety of testing laboratories to undertake orienteering burn tests, produce test reports, obtain authorisation for building works and organise certification. Detailed information is available about our Certificates and test reports and ways to download these.
This test shows how flame retardant Trevira CS textiles (left) melt only slowly after the ignition source is extinguished, while conventional textiles (right) go up totally in flames.
Trevira CS fabrics are used in many fields of application. Below you can view a selection of the most important currently valid test standards that are applied when determining the burn behaviour of textiles, showing the flammability class achievable by Trevira CS:
TEST STANDARD | FLAMMABILITY CLASS | COUNTRY |
---|---|---|
DIN 4102 | B1(fire shaft) | Germany |
EN 13501-1 | B-s1, d0 | Europe |
EN 13772, EN 13773 | Class 1 | Europe |
NF P 92-503 bis 92-505, 92-507 | M1 | France |
BS 5867, 5438 | Part 2, Type C | United Kingdom |
NFPA 701 | Passed | USA |
TEST STANDARD | FLAMMABILITY CLASS | COUNTRY |
---|---|---|
DIN 4102 | B1(fire shaft) | Germany |
EN 1021 | No combustion | Europe |
NF D 60-013 (AM 18) | Passed | France |
NF P 92-503 bis 92-505, 92-507 | M1 | France |
BS 5852 (crib 5, 7) | Passed (with flame retardant foam or interlayer) | United Kingdom |
California TB 116, 117, 133 | Passed | USA |
TEST STANDARD | FLAMMABILITY CLASS | COUNTRY |
---|---|---|
EN ISO 12952, DIN EN 14533 | A | Europe |
California TB 604 | Passed | USA |
TEST STANDARD | FLAMMABILITY CLASS | COUNTRY |
---|---|---|
EN 45545-2 | Passed with suitable foam for furniture fabrics | Europe |
UIC 564-2 | Class A | International |
All test standards are valid worldwide
TEST STANDARD | AREAS OF APPLICATION |
---|---|
FTP Code 2010, Res. MSC.307(88), Annex 1, Part 7 | Curtains, decorative fabrics (hanging) |
FTP Code 2010, Res. MSC.307(88), Annex 1, Part 8 | upholstered furniture |
FTP Code 2010, Res. MSC.307(88), Annex 1, Part 5 | wall panelling |
FTP Code 2010, Res. MSC.307(88), Annex 1, Part 9 | bedding |
